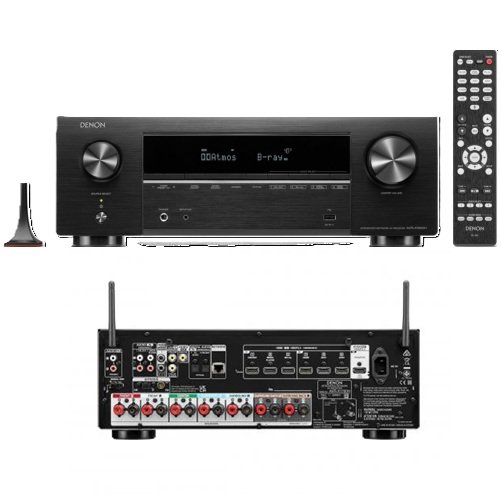

Denon AVR-X1800H – 7.2 Channel 8K AV receiver with Dolby Atmos
AVR-X1800H
7.2 Ch. 175W 8K AV Receiver with HEOS® Built-in
Enjoy incredible 8K video and 3D audio from the AVR-X1800H. It easily fills small to medium-size rooms with brilliant audio from a 7.2 or 5.2.2 set up with Dolby Atmos and DTS:X. And with HEOS® Built-in, you can wirelessly stream music and share with every HEOS-enabled speaker around your home.
- Enveloping 3D audio
- Advanced 8K HDMI connection
- Simple setup and Audyssey room correction
- Powerful, discrete seven-channel amplifier
- HEOS® Built-in technology
- Built-in Bluetooth and Wi-Fi
From living room to concert hall
A great home theater needs an even better heart. Preferably with 3D audio, 7.2 channels, and HEOS® Built-in.
Start with quality that you can hear
Denon® quality sound
Fill small to medium rooms with dynamic Denon sound.
Immersive 3D audio
Feel fully enveloped in your music or movie sound.
Geared for 8K
Enjoy amazing video quality from the latest 8K technology.
Tailor your sound with complete connectivity & control
Every element of a Denon product is thoughtfully crafted to deliver an unforgettable audio experience.
Specifications
|
Number of Power Amps
|
7 |
|---|---|
|
Power Output (8 ohm, 20 Hz–20 Khz, 0.08% 2ch drive)
|
80 watts per channel |
|
Power Output (6 ohm, 1 kHz, 0.7% 2ch drive)
|
120 watts per channel |
|
Power Output (6 ohm, 1 kHz, 1% 1ch drive)
|
175 watts per channel |
Others
|
System Remote Control
|
RC-1257 |
|---|---|
|
Power Consumption
|
430 W |
|
Power Consumption (No Sound, ECO on/off)
|
29W/39W |
|
Standby Consumption in W
|
0.1 |
|
CEC Standby Consumption in W
|
0.5 |
|
Maximum Dimensions (W x D x H)
Antenna:Horizontal (in) Antenna:Vertical (in) |
17.1 × 13.3 × 6.0 17.1 × 13.3 × 8.5 |
|
Weight in LBS
|
19.0 |
|
Carton Weight (inc. product) in lbs
|
23.4 |
Inputs/Outputs
|
HDMI In/Out
|
6 / 1 |
|---|---|
|
Analog In/Out
|
2 / No |
|
Phono (MM) In
|
Yes |
|
Digital in: Optical/Coaxial
|
2 / 1 |
|
Multi-Room Out: Analog/Digital
|
1 / No |
|
Multichannel Pre-Out
|
Yes (2.2) |
|
Subwoofer Out
|
2 |
|
Speaker Terminal: Gold-Plated Screw / Regular Screw
|
No / Yes |
|
Number of Speaker Terminals
|
7 |
|
Multi-Room Speaker Terminal
|
assignable |
|
USB Audio Input Front
|
Yes |
|
USB Power 5V/1.5A Rear
|
Yes |
Multichannel Surround
|
DTS HD Master / DTS:X / DTS:X Pro
|
Yes / Yes / No |
|---|---|
|
DTS Neo:6 / DTS Neural:X
|
No / Yes |
|
DTS Virtual:X
|
Yes |
|
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music
|
Yes / Yes / Yes / Yes |
|
Dolby ProLogic Il / Dolby Surround
|
No / Yes |
|
Multichannel Stereo
|
Yes |
|
Dialog Enhancer
|
Yes |
|
Max. number of processing (preamp) channels
|
7.1 |
Sound Enhancements
|
Discrete Power Amplifier
|
7 |
|---|---|
|
Audyssey
|
MultEQ |
|
Audyssey Dynamic EQ / Dynamic Volume
|
Yes / Yes |
|
Compressed Audio Restorer
|
Yes |
Network
|
Media Server
|
Yes |
|---|---|
|
HEOS Wireless Multi-Room Technology
|
Yes |
|
Bluetooth Re-Transmit for Bluetooth Headphones
|
Yes (with volume control) |
|
Alexa / Google Voice Assistant / Apple HomePod
|
Yes / Yes / Yes |
|
Lossy Formats: MP3 / WMA / AAC
|
Yes / Yes / Yes |
|
Lossless Formats: FLAC / ALAC / WAV
|
Yes / Yes / Yes |
|
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
|
Yes / Yes / Yes |
|
DSD Audio Streaming
|
Yes (2.8/5.6MHz) |
|
FLAC HD 192/24
|
Yes |
|
WAV 192/24
|
Yes |
|
ALAC 192/24
|
Yes |
|
Gapless playback
|
Yes (FLAC, WAV, ALAC ,DSD) |
|
AirPlay Audio Streaming
|
Yes (AirPlay2) |
|
Internet Radio
|
Yes (TuneIn) |
|
Spotify
|
Yes (connect) |
|
Pandora
|
Yes |
|
SiriusXM
|
Yes |
|
Other Streaming Services
|
Amazon Music HD / Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix |
|
Roon Tested
|
Yes |
|
HEOS App Control
|
Yes |
|
Compatible with Remote APP for Smart Phones
|
Denon AVR Remote |
|
Compatible with Remote APP for Tablets
|
Android / iOS / Amazon Kindle |
|
Ethernet Ports
|
Yes |
|
Wi-Fi
|
Yes |
|
Bluetooth
|
Yes |
HDMI
|
HDMI Inputs: Back/Front
|
6 (3x 8K) / Yes |
|---|---|
|
HDMI Outputs: Main/Zone
|
1 / No |
|
HDMI max Resolution (8k / 4k)
|
8k/60 – 4k/120 |
|
HDMI to HDMI Scaling
|
up to 8K 60/50 |
|
HDMI: 8K / 4K / CEC / eARC
|
Yes / Yes / Yes / Yes |
|
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR /HLG
|
Yes / Yes / Yes / Yes |
|
HDMI: ALLM / QMS / QFT / VRR
|
Yes / Yes / Yes / Yes |
|
HDMI Pass-Though in Standby Mode
|
Yes |
Multiroom / CI
|
HEOS Multiroom integrated
|
Yes |
|---|---|
|
TV Sound grouping
|
Yes |
|
Multiroom zones
|
2 |
|
Main room multichannel audio – Zone stereo downmix
|
Yes |
|
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog
|
Yes (2ch) / Yes (2ch) / Yes / Yes |
|
Zone Audio Output: Speaker / Pre-Out
|
Yes / No |
|
Webbrowser Setup
|
Yes |
|
IP Control / RS232 Control / Web Control / App Control
|
Yes / No / Yes / Yes |
