Product Description

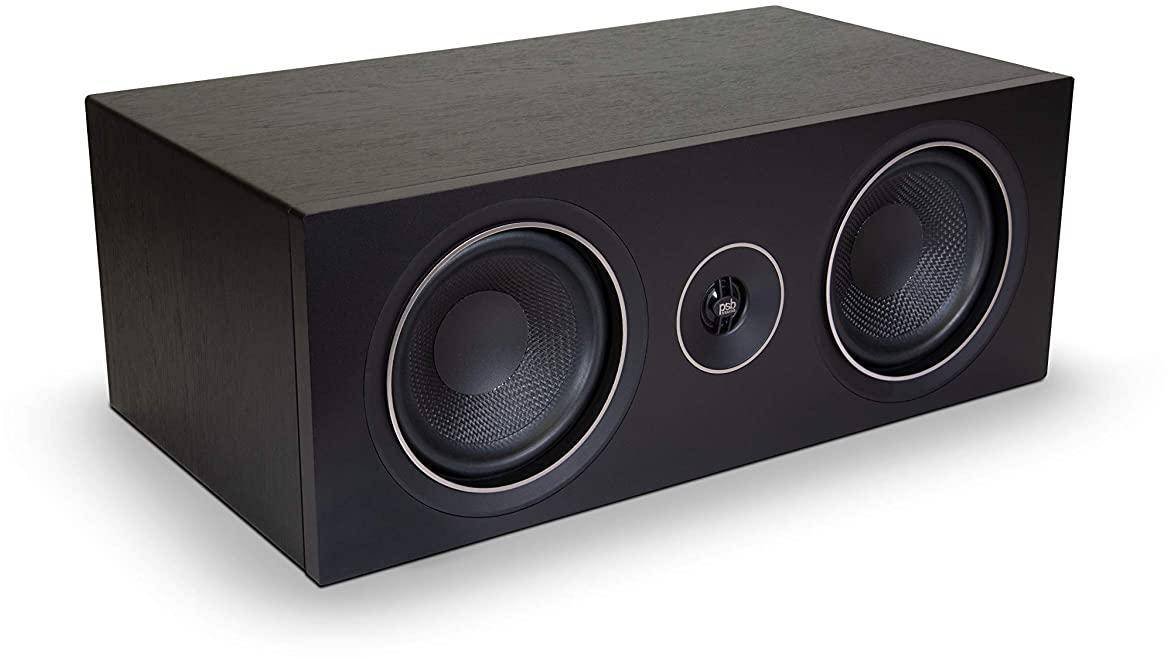

- Features a ¾†(19mm) Black anodized aluminium dome tweeter with front waveguide.
- Two 5¼†(133mm) Textured polypropylene woofers with rubber surround.
- Bass reflex cabinet design with a rear-firing port.

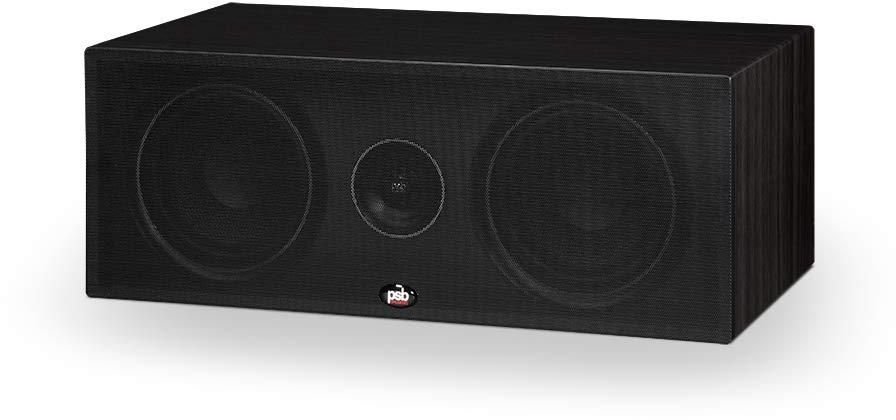

- Comes with 3 acoustically-transparent detachable magnetic grilles.

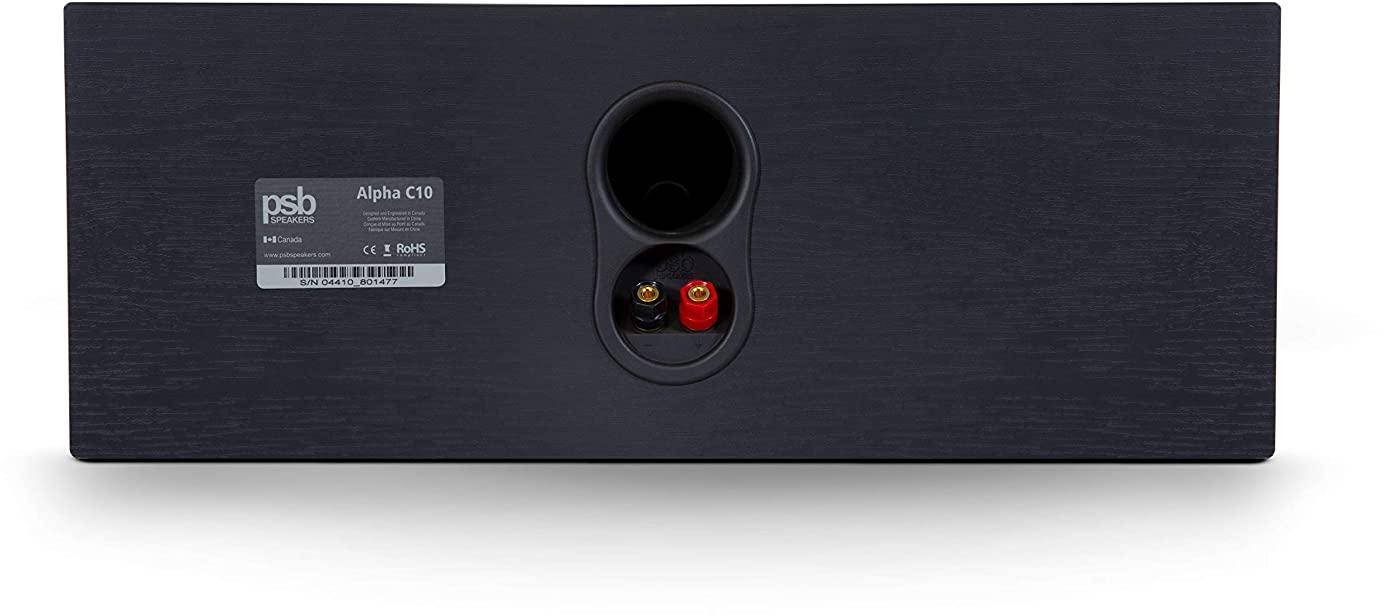

- Dual five-way gold-plated binding post speaker terminals.
| IN THE BOX | |
|---|---|
| Sales Package | Alpha C10 Centre Speaker and User Documentation |
| General | |
|---|---|
| Brand | PSB-Speakers |
| Model | Alpha C10 |
| Color | black |
| Specifications | |
|---|---|
|
Frequency Response
|
On Axis @ 0° ±3dB: 55-21,000 Hz
On Axis @ 0° ±1 1/2dB: 65-20,000 Hz
Off Axis @ 30° ±1 1/2dB: 65-10,000 Hz
LF Cutoff -10dB: 37 Hz
|
| Sensitivity |
Anechoic Chamber: 88 dB
Listening Room: 90 dB
|
| Impedance |
Nominal: 8 Ohms
Minimum: 6 Ohms
|
|
Input Power
|
Recommended: 15 – 120 Watts
Program: 60 Watts
|
|
Tweeter (Nominal)
|
3/4†(19mm) Black Anodized Aluminium Dome with Ferrofluid and Neodymium Magnet |
|
Woofer (Nominal)
|
2 x 5 1/4†(133mm) Textured Polypropylene Cone with Rubber Surround |
|
Crossover
|
2,500Hz, LR4 |
|
Design Type
|
Tuned Port Bass Reflex 2†(49mm) Rear Port |
| Dimension | |
|---|---|
| Dimension | 450 x 170 x 243 mm |
| Weight | 9 kg |
